Victorian Tile Restoration Uncovers Hidden Safety Risks

Identifying and Resolving Movement and Loose Grout in Victorian Tile Floors in Stapenhill

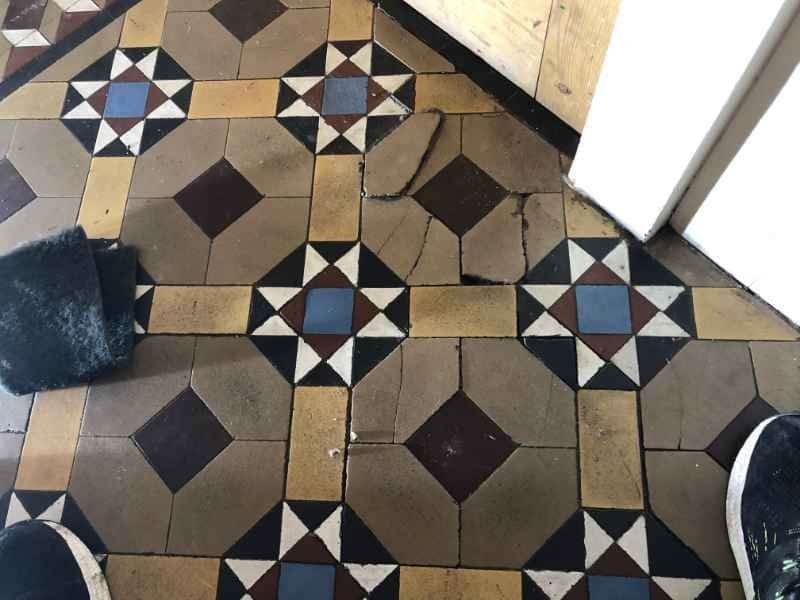

If you notice movement in your Victorian tile floor or observe loose grout joints, this often signals deeper, underlying issues rather than simple surface wear. The homeowner of this Stapenhill property grew increasingly concerned about the visible movement across the entrance floor. Areas with loose tiles, cracking joints, and uneven surfaces posed a significant trip hazard. Although this floor was an original feature of an Edwardian entranceway that retained much of its historic charm, years of wear, previous repairs, and ongoing movement had rendered it vulnerable to further damage.

Conducting a Comprehensive Assessment of the Floor’s Condition

The entrance showcased a stunning array of Victorian geometric tiles, reflecting the architectural style that defined Burton’s industrial prosperity. Over time, heavy foot traffic had caused noticeable wear in the central pathway, while the edges remained relatively stable. Many tiles moved underfoot, and gaps developed between adjoining sections due to inadequate previous repairs. The homeowner’s primary concern was safety, particularly in this heavily used entrance area.

Loose grout was prevalent throughout various sections of the floor. In some areas, previous repair attempts had used harder materials that failed to bond effectively with the surrounding tiles. Small fragments had chipped away from the joints, exposing edges to additional wear. The uneven surface between neighbouring tiles created an uncomfortable feeling underfoot and gave the floor a neglected appearance, despite regular cleaning efforts.

Throughout the hallway, the condition of the clay surface varied significantly. Certain areas retained their vibrant colour and definition, while others displayed darker patches where years of grime had accumulated in the porous tile body. Historic clay floors of this nature gradually absorb contaminants over time, explaining why routine washing becomes less effective as the years go by. This led to a floor that appeared worn and inconsistent, even though the original geometric design remained largely intact.

A closer examination revealed evidence of multiple previous attempts to address isolated defects rather than treating the floor as a cohesive system. Different sections had been lifted and replaced at various times, resulting in subtle discrepancies in level and alignment. Some joints contained deteriorated material that had become brittle and discoloured, while other repairs appeared significantly newer. These inconsistencies disrupted the visual unity of the original layout.

Although the entrance floor remained usable, the practical implications of the deterioration were increasingly hard to overlook. Tiles shifted slightly under weight, grout continued to loosen, and the uneven surface complicated cleaning efforts. Dirt accumulated in open joints and around unstable areas, creating a cycle where the floor appeared progressively more worn. The homeowner recognised that superficial cleaning would not resolve these issues, making it crucial to determine the full extent of the underlying problems.

The original floor pattern stood out as one of the property’s most attractive features. Decorative borders and contrasting clay colours defined the layout, enhancing the entrance’s period character. Despite the movement and visible wear, most of the historic materials remained intact, adding to the frustration of the situation. The floor seemed neglected, yet much of the original fabric was still present and salvageable.

The project commenced with a thorough evaluation of the floor’s visible condition, instead of immediately jumping into intervention. Loose sections, open joints, worn traffic paths, and areas of previous repairs were all meticulously documented. Identifying the extent of the deterioration provided clarity on the floor’s condition and laid the groundwork for subsequent actions.

What Factors Lead to Uneven Victorian Tiles and Failed Repairs in Your Home?

Uneven tiles and open joints frequently indicate that a previous repair has failed beneath the surface. In this Stapenhill hallway, the movement affected not only individual tiles but also the interconnected areas where the supporting bed had lost stability. As the support weakened, tiles began to shift independently, and surrounding joints gradually opened up.

Loose tiles seldom fail in isolation; the support beneath them has changed.

The visible symptoms clarified why dirt accumulated quickly around the affected areas. Open joints trapped contaminants, while movement allowed debris to infiltrate deeper into the gaps whenever the floor was stepped on. Historic clay tiles are inherently absorbent, meaning that once dirt penetrates weakened joints, it becomes progressively more challenging to remove with standard cleaning methods. Similar issues, along with the appropriate approach to long-term solutions, are discussed in this guide to properly restoring Victorian tiles.

Why Is Stabilisation of Loose Victorian Tiles Essential Before Restoration?

Consistently cleaning a floor with loose tiles often delays addressing the underlying issue and may make ongoing deterioration easier to overlook. Once the extent of the movement was assessed, the planned cleaning was put on hold to prioritise stabilising the unstable areas. Attempting restoration before stabilisation would leave the root problem unresolved and could potentially worsen the situation.

Cleaning alone would have provided a temporary cosmetic improvement while leaving the movement beneath the floor unchanged. Stabilisation first allowed for the careful removal of affected tiles, the elimination of unsuitable materials, and the preparation of the supporting bed before relaying the original pieces in their proper positions. Damaged joints were repaired concurrently, restoring continuity across the entire floor.

Only after addressing the structural issues could the subsequent restoration stages proceed in the correct order. This method protected the original tiles, minimised the likelihood of future movement, and ensured that the cleaning and finishing work yielded lasting results, rather than a temporary fix.

Transforming a Safety Hazard into a Functional Entrance: The Advantages of Stable Victorian Tiles

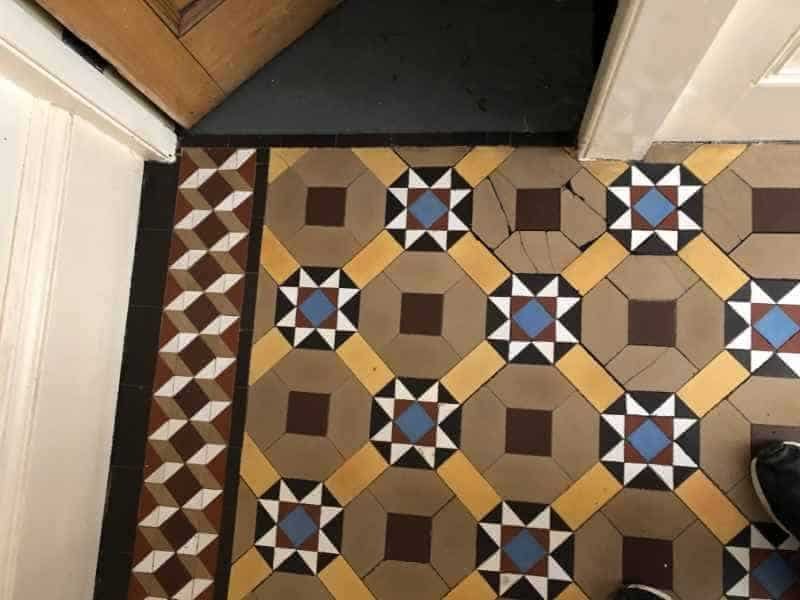

Homeowners often notice improvements in stability after a successful Victorian tile restoration. Following the repairs, the entrance floor no longer shifted under pressure, and the previously uneven surfaces felt secure underfoot. The removal of loose sections turned the hallway from a source of concern into a functional, reliable entrance once again.

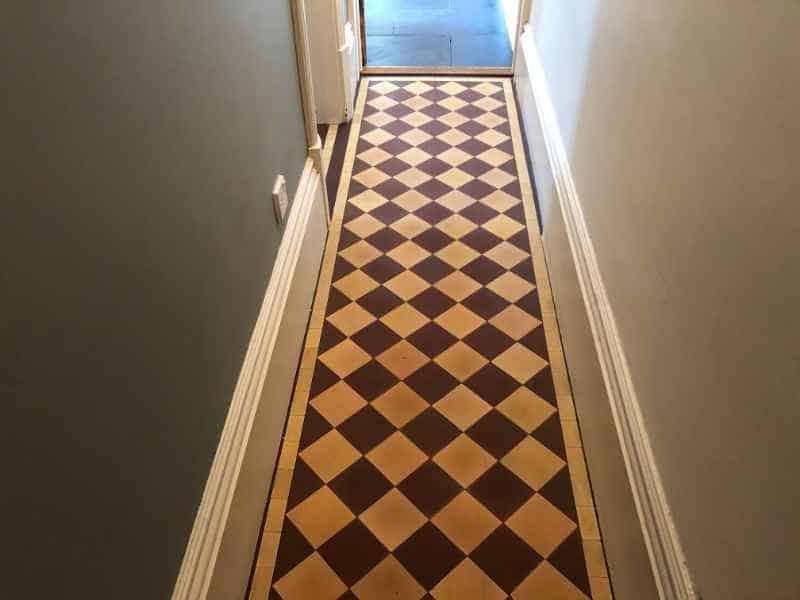

The visual enhancements were equally striking. Repaired joints provided a more uniform appearance, while thorough cleaning revealed colours and pattern details that had been obscured by years of grime buildup. A breathable protective treatment was applied to resist future staining while allowing moisture to dissipate naturally through the floor structure.

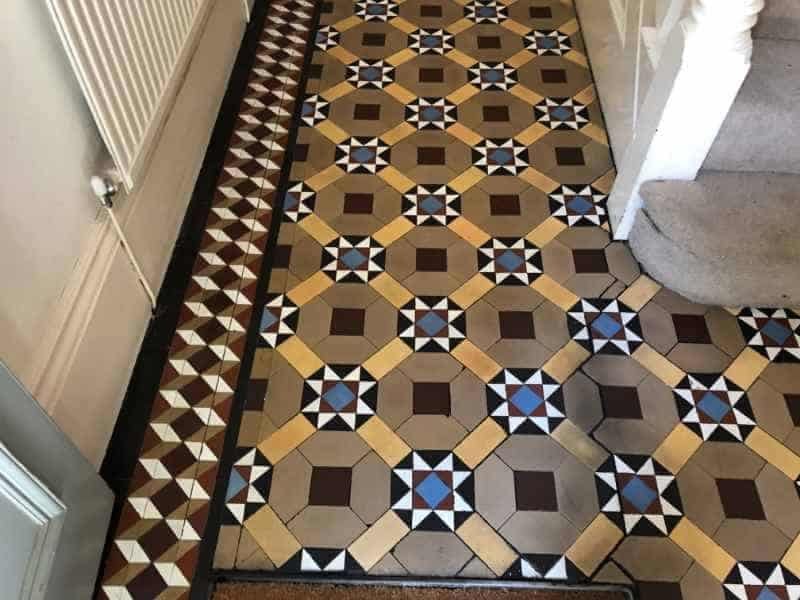

A fully restored Victorian tile floor showcases the original fired matte surface with consistent colour and pattern. When a topical sealer is appropriate, it can add a subtle protective sheen without altering the character of the period floor. The completed entrance maintained its historic aesthetic while becoming safer, cleaner, and significantly easier to maintain.

Where Can You Gain Further Insights into Restoring Victorian Tile Floors and Avoiding Common Pitfalls?

Failing to address the underlying causes of tile movement often leads to recurring issues. One of the key lessons learned from this Stapenhill project was that visible symptoms rarely occur in isolation. Loose joints, uneven levels, and movement underfoot were all interconnected, and focusing solely on appearance would never provide a lasting solution.

This project also highlighted the importance of executing the work in the correct order. Stabilisation was the initial step, followed by cleaning, joint repairs, and protective finishing. This systematic approach preserved the original clay material while offering a practical solution to the homeowner’s concerns.

Readers seeking broader insights can explore the main Victorian tile cleaning resource, which delves into common issues, maintenance considerations, and restoration principles for historic clay floors. Understanding the causes of deterioration remains the most effective way to prevent repeating past mistakes, ensuring period entrances retain their original character for many years.
