Shed Wiring Tips: Essential Installation Advice for Electricians

If you have a shed situated on your acreage property and are tired of relying on extension leads from your main residence, it is vital to consider having it wired safely and effectively. Whether your space is a simple storage shed requiring just a light and a power point or a fully equipped workshop where you operate welders and compressors, following the correct procedures is essential. In NSW, the only legal and secure way to achieve this is by engaging a licensed electrician.

This comprehensive guide details the steps necessary to supply power to your shed, outlines the installations your electrician must undertake, and offers an estimate of the costs you can expect within the Mid North Coast region.

Kick Off Your Shed Wiring Project with the Right Cable Run

The most crucial aspect of any shed wiring project is establishing a dependable power source that connects from your main switchboard to your shed. Depending on the expanse of your property, this distance can vary considerably, ranging from 30 to over 100 metres. The longer the cable run, the larger the cable size required to adequately address voltage drop, ensuring your shed receives the necessary power efficiently and reliably.

You essentially have two feasible options for your cable run:

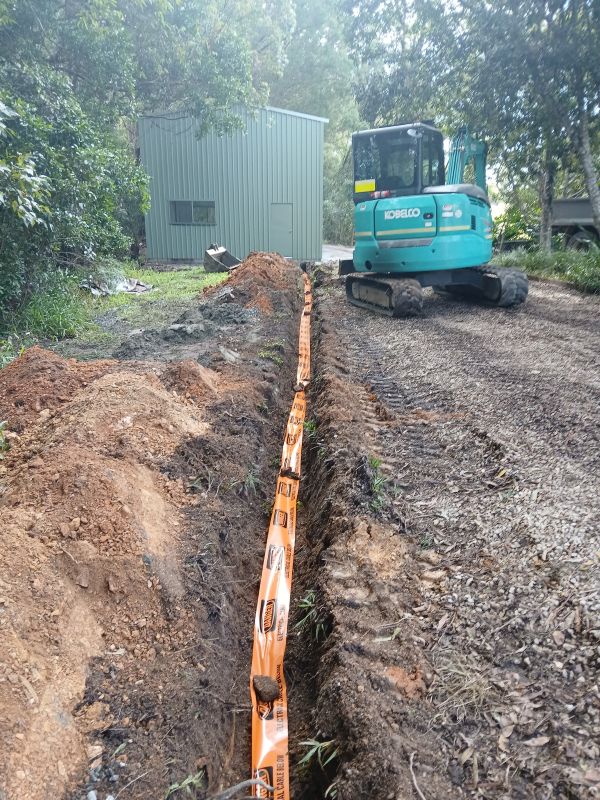

• Underground cable run — This method is often the preferred choice due to its aesthetic appeal. A licensed electrician will install heavy-duty cable via orange conduit, buried at a depth of at least 500mm (or deeper if vehicles might traverse the area). This approach protects the cable from adverse weather conditions, wildlife interference, and falling branches, making it an ideal selection for most acreage properties.
• Overhead cable run — While less common in contemporary installations, this method may be necessary if you encounter solid rock or challenging terrain that complicates trenching. Overhead installations require adherence to specific clearance heights and support poles, which can significantly increase overall costs.

For the majority of properties located in Bellingen, Coffs Harbour, and the Mid North Coast, the underground option remains the optimal selection. Your electrician in Bellingen can evaluate your site and recommend the most effective route for your installation.

Set Up a Dedicated Sub-Board for Efficient Shed Power Management

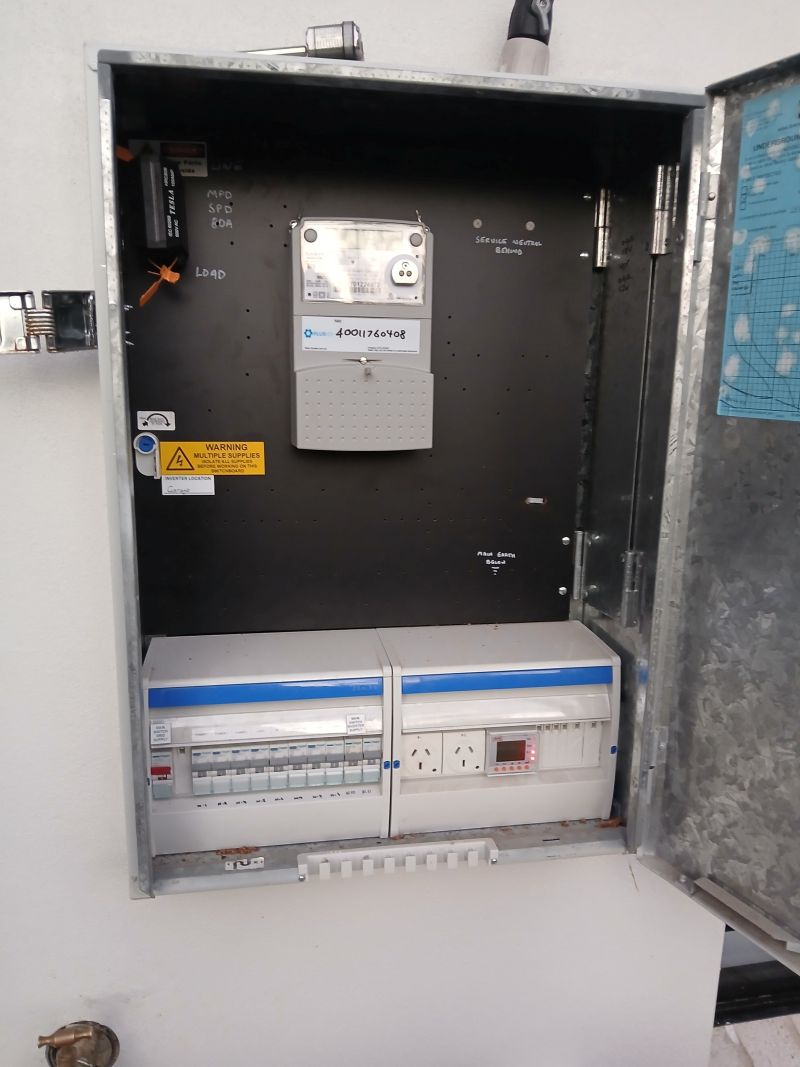

It is insufficient to simply run a single cable to the shed and expect to plug in devices without any additional infrastructure. Any shed that receives a proper power supply must be equipped with its own dedicated sub-board, also known as a distribution board. This setup operates as a mini switchboard within the shed, effectively managing all the electrical circuits to ensure safe operation.

Your sub-board will typically include the following crucial components:

• Main switch — This switch enables you to isolate all power to the shed independently from the main house, providing an additional layer of safety and control.
• RCDs (safety switches) — These devices are mandatory under NSW electrical regulations. They can instantly cut the power within milliseconds if a fault occurs, which is particularly important in a shed environment often exposed to moisture, dust, and potential damage.
• Circuit breakers — These offer individual protection for each circuit in your shed, safeguarding lighting, general power, and dedicated tool circuits, ensuring that you can operate multiple devices without the risk of overloading.

If your house’s main switchboard is outdated, your electrician may also recommend upgrading the switchboard to accommodate the additional load directed to the shed, ensuring that all connections are both safe and efficient.

What Key Equipment Needs Installation Inside Your Shed for Optimal Functionality?

The specific installations performed by your electrician inside the shed will be customised to its intended purpose. Here is a detailed overview of what these installations typically include.

Improve a Basic Storage Shed Setup for Enhanced Usability

For a shed primarily designed for storing tools, a ride-on mower, or general equipment, consider the following installations:

• LED batten lights — Installing one or two ceiling-mounted LED battens can effectively illuminate the entire space. Your trusted electrician can provide guidance on the most suitable lighting layout based on the dimensions of the shed and your specific storage requirements.
• Two to four general power points — This quantity is adequate for plugging in chargers, radios, or a drop saw whenever necessary. Standard power points and switches will operate on a single circuit, ensuring versatility for various tools and equipment.
• External light — An outdoor-rated LED light positioned above the door ensures safe access to the shed without fumbling in the dark, enhancing both safety and convenience.

Design a Powered Workshop Shed for Improved Efficiency

If you frequently utilise power tools such as drop saws, bench grinders, or dust extractors, your wiring requirements will extend beyond basic setups and require careful planning and consideration:

• Multiple circuits — Establish separate circuits for lighting, general power, and specialised power tool outlets. This configuration prevents the lights from flickering whenever you activate a saw, ensuring a stable and conducive working environment.
• Higher-rated power points — Install 15-amp or 20-amp outlets to effectively support heavier tools, ensuring you have the appropriate power supply for your equipment needs.

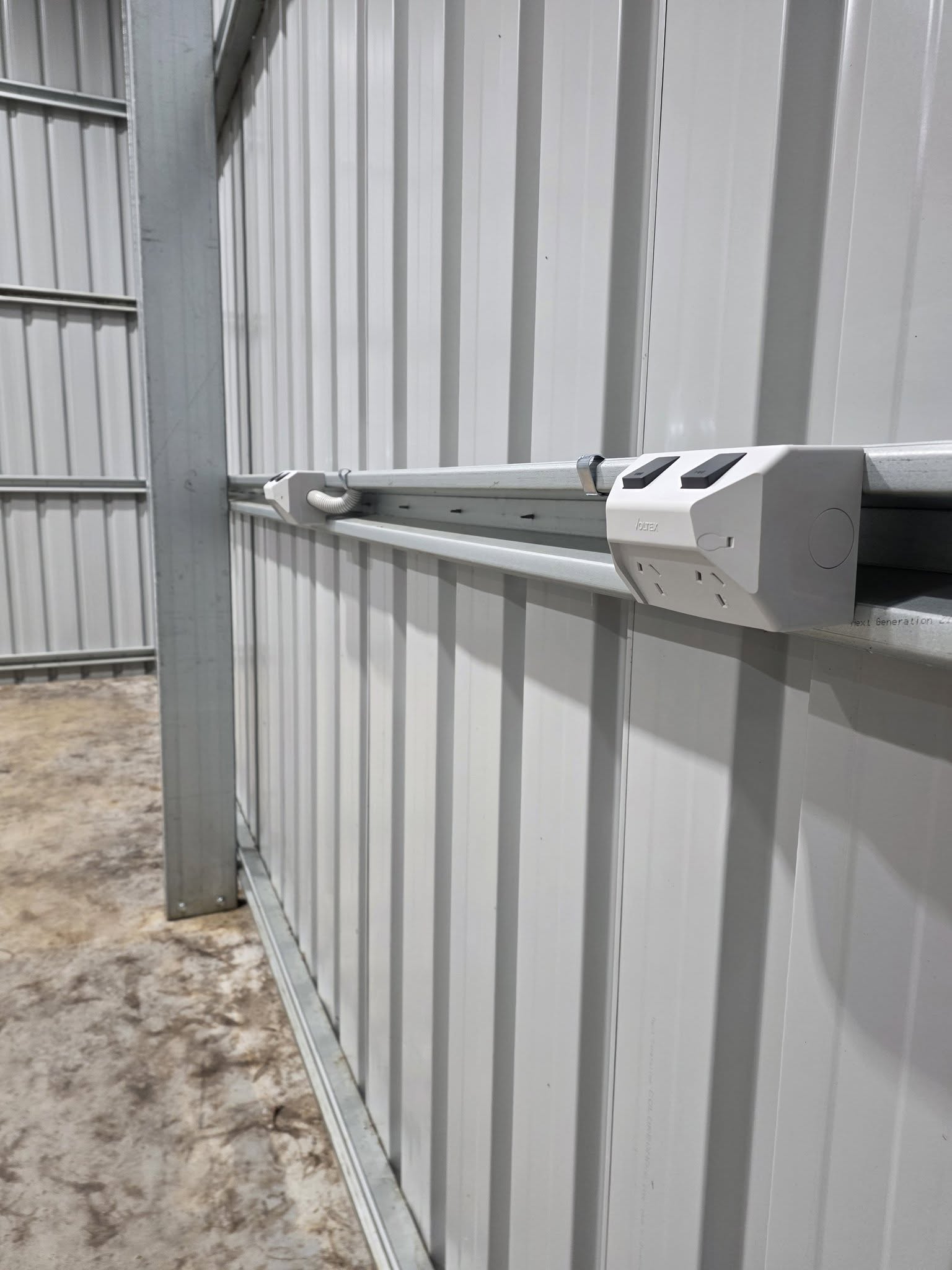

• Increased number of power points with optimal placement — Ensure outlets are situated at bench height instead of solely at skirting level, facilitating ease of access based on your workbench configuration.

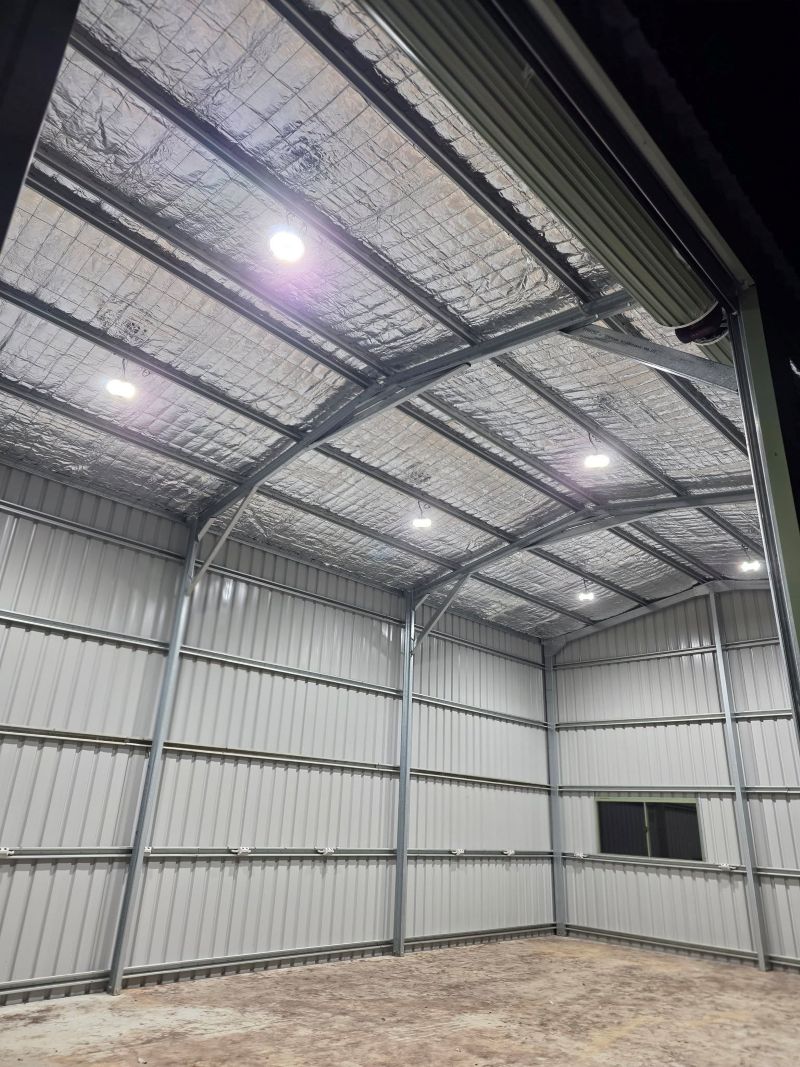

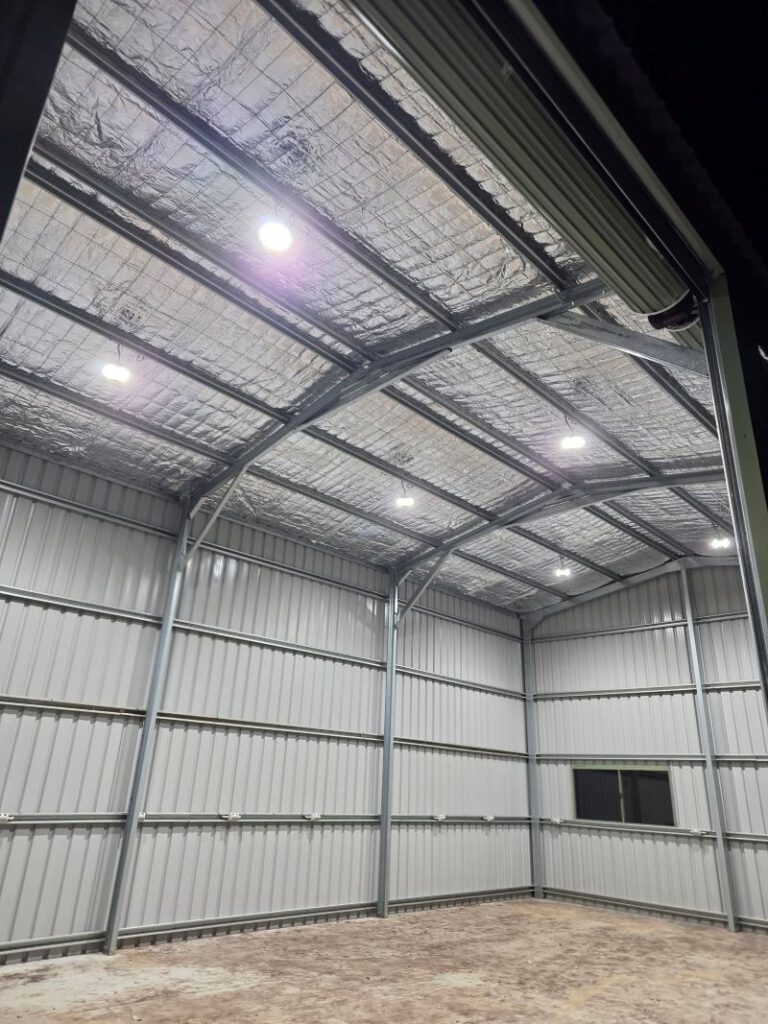

• Dedicated lighting — Provide brighter, focused lighting over work areas, utilising LED high-bays for larger sheds to enhance visibility and safety during work.

For comprehensive guidance on establishing dedicated circuits for heavy tools, refer to Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which delves into the specifics of effective wiring solutions tailored to your needs.

Equipping a Full Workshop with Essential Three-Phase Power for Heavy Machinery

If your activities involve operating heavy machinery such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying solely on single-phase power may not be adequate. This is where three-phase power becomes crucial to meet your operational demands.

Three-phase power offers a more stable and higher-capacity power supply, allowing you to operate multiple heavy-duty machines simultaneously without compromising performance. Your electrician will need to:

• Organise a three-phase supply from your energy distributor (this process can take several weeks in the Mid North Coast region).
• Install a three-phase sub-board in your shed, complete with the necessary breakers and RCDs to ensure safety and compliance with local regulations.
• Utilise heavier cabling — It’s essential to keep in mind that three-phase cable runs can incur higher costs, especially over extended distances, so careful planning is crucial.
• Set up three-phase outlets — These heavy-duty sockets are specifically rated for the equipment you intend to operate, providing the necessary power for effective functioning.

If you are uncertain about whether you require three-phase power, read Do I Need Three-Phase Power on My Property? — this informative resource discusses when it is beneficial and when a properly configured single-phase system will suffice. We also offer complete three-phase switchboard installation if that aligns with your project needs.

Protect Your Shed with Essential Surge Protection

Properties on the Mid North Coast often experience severe lightning storms. A direct or nearby strike can potentially cause damage to everything within your shed, including tools, chargers, fridges, and any devices plugged in, leading to costly repairs and replacements.

Investing in a reliable surge protection device, installed within the sub-board, acts as affordable insurance against electrical surges. It absorbs voltage spikes before they can reach and damage your valuable equipment. For sheds housing expensive tools or a workshop setup, this measure proves invaluable and can save you considerable costs over time.

If your property also uses a generator for backup power, your electrician can install a generator changeover switch, ensuring that both the shed and the house can safely switch to generator power during outages, maintaining essential operations during emergencies.

What Are the Council Approval and Compliance Requirements in NSW?

Here are several critical factors to keep in mind regarding council approval and compliance:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to save on labour costs, all electrical work — including cabling, connections, and sub-board installation — must be handled by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion of the work.
• The depth of underground cable must comply with AS/NZS 3000 (the Wiring Rules), a standard your electrician will ensure compliance with during the installation process.
• If the shed is newly constructed, you may need development approval depending on your local council and the size of the shed. While the electrical work itself might not require a separate permit, the overall construction may necessitate one for compliance.

Hack-It Electrical Solutions proudly holds the NSW Electrical Contractor Licence #230609C. We provide a compliance certificate for every job we complete, ensuring peace of mind and adherence to local regulations.

Understanding the Costs Associated with Shed Wiring on Acreage Properties

Each shed presents unique challenges — including the distance from the house, whether you require single-phase or three-phase power, the number of circuits needed, and soil conditions affecting trenching. However, here’s a realistic cost guide for the Mid North Coast area:

• Basic shed wiring (lighting + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Complete workshop setup with three-phase power, dedicated circuits, and surge protection — Starting from $8,000+

Be aware that longer cable runs (50m or more), rocky terrain requiring specialised equipment, or upgrades to three-phase supply will all increase costs. The most effective way to obtain an accurate estimate is to have your electrician visit your property, assess the cable route, and gain a clear understanding of your shed’s intended use and requirements.

If you would like a straightforward quote for your specific setup, feel free to call us at 0402 079 803 or contact us here.

Addressing Frequently Asked Questions About Shed Wiring in NSW

Can I Legally Wire My Shed Myself in NSW?

Absolutely not. All electrical work in NSW must be conducted by a licensed electrician. This includes tasks such as running cables to the shed, installing the sub-board, power points, lighting, and more. Engaging in DIY electrical work is illegal and poses significant dangers to both you and your property. Your electrician will issue a Certificate of Compliance once the work has been completed, ensuring everything meets safety standards and regulations.

How Deep Must Underground Cable Be Buried to Meet Safety Standards?

According to the Australian Wiring Rules (AS/NZS 3000), underground cable installed in conduit should be buried a minimum of 500mm deep under normal conditions. If vehicles are expected to drive over the route, the cable must be buried deeper, typically around 600mm or more. Your electrician will determine the appropriate depth based on your specific property circumstances, ensuring compliance with safety regulations.

Do I Need a Separate Meter for My Shed in NSW?

In most cases, the answer is no. The shed’s sub-board connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed serves as a standalone dwelling or commercial premises — this consideration involves discussions with both the council and your energy distributor to ensure compliance with local regulations.

How Long Does It Typically Take to Wire a Shed on Acreage?

A basic shed wiring job, which includes trenching, cable installation, sub-board setup, lighting, and power points, typically takes between one to two days once the trench is prepared. If you’re digging the trench yourself, your electrician can provide guidance on the precise route and depth before you begin. Keep in mind that three-phase jobs may take longer due to the need to arrange the supply connection with the distributor first.

Can I Run Power From the Shed to Other Buildings on My Property?

Yes, you can. However, each additional building will require its own appropriately rated cable run and may need its own sub-board depending on the load. Your electrician can design a comprehensive layout across multiple buildings to ensure that the cabling and switchboard capacity are sufficient from the outset, rather than trying to add components later and potentially creating issues with power distribution and safety.

Ensure Your Shed Wiring is Completed Correctly with Professional Assistance

If you are situated on acreage near Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere across the Mid North Coast, Hack-It Electrical Solutions is here to assist you in setting up your shed correctly — whether it involves a basic lighting and power setup or a comprehensive three-phase workshop installation tailored specifically to your needs and requirements.

Give us a call at 0402 079 803 or reach out through our website to schedule a site visit. We will survey your property, determine the optimal cable route, and provide you with a straightforward quote that meets your requirements.
