Ducted and Split Air Conditioning Solutions in Tarragindi

Precision Electrical & Air has successfully executed a detailed air conditioning installation featuring two distinct systems at a residential property in Tarragindi. This project encompassed the supply and installation of a Daikin ducted air conditioning system on the upper floor, alongside a Daikin high-wall split system situated in the living area on the lower floor.

Expert Installation of the Daikin FDYAN160AV1 16.0kW Ducted Air Conditioning System

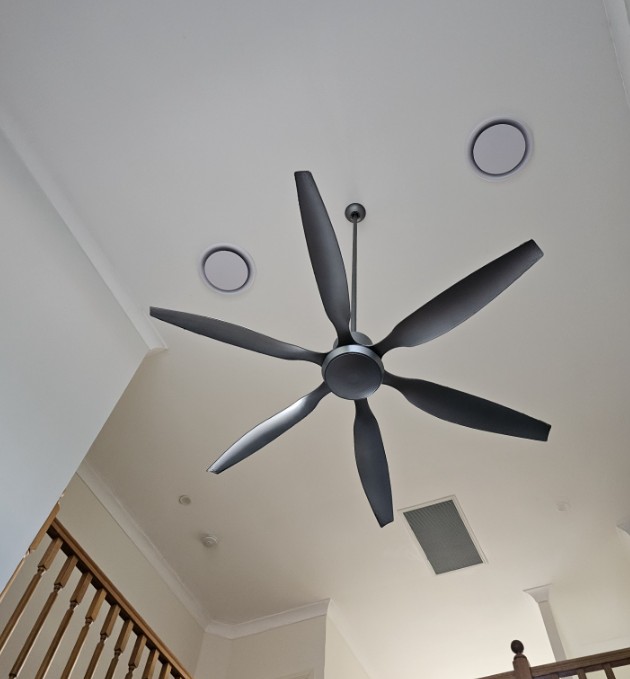

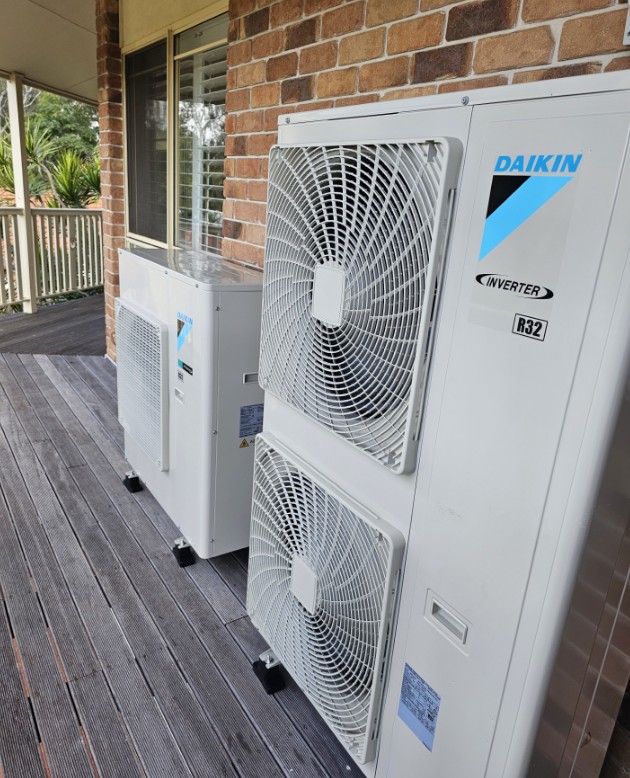

The skilled team at Precision Electrical & Air meticulously installed the Daikin FDYAN160AV1 16.0kW ducted air conditioning system. The indoor unit was strategically placed within the ceiling cavity above the void, while the condenser was securely mounted on the front balcony wall using rubber feet to minimise vibrations. The connection between the indoor and outdoor units was carefully concealed within ducting as it exited the ceiling space.

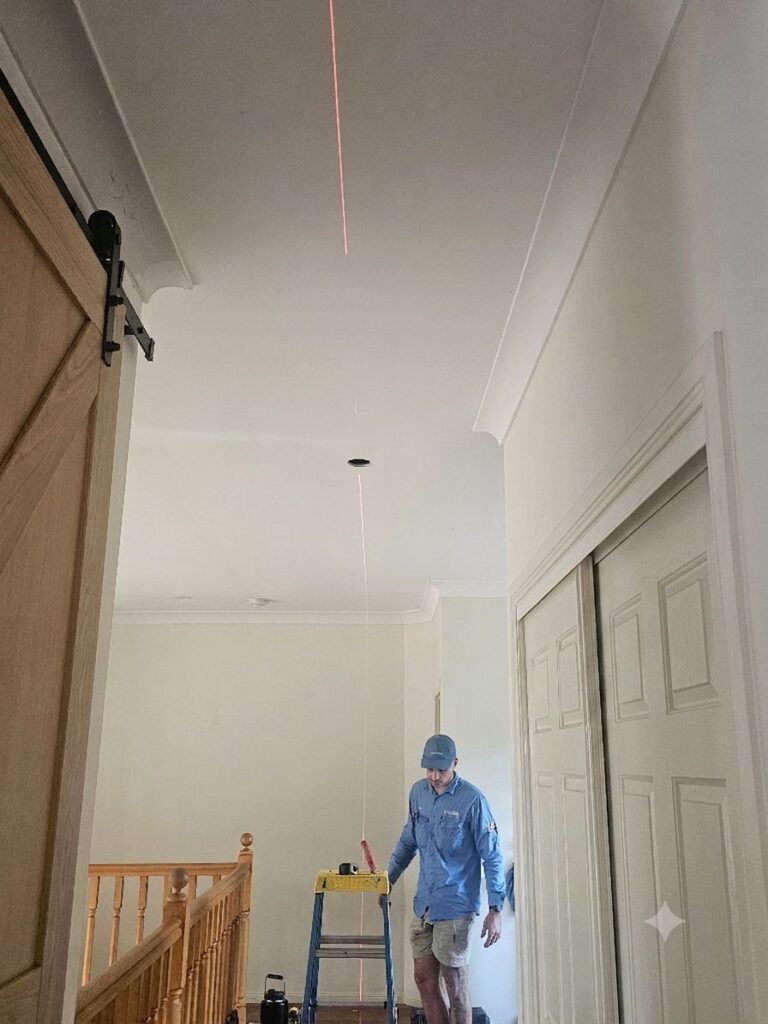

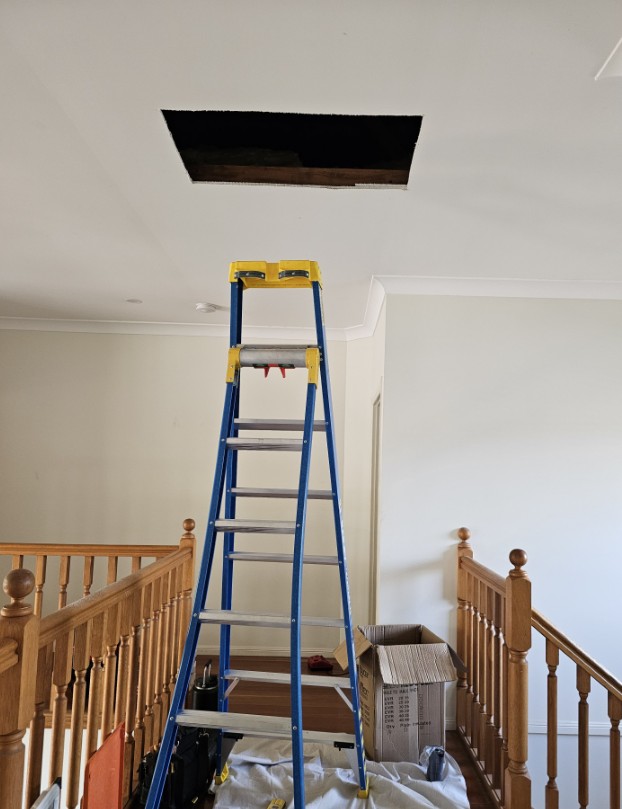

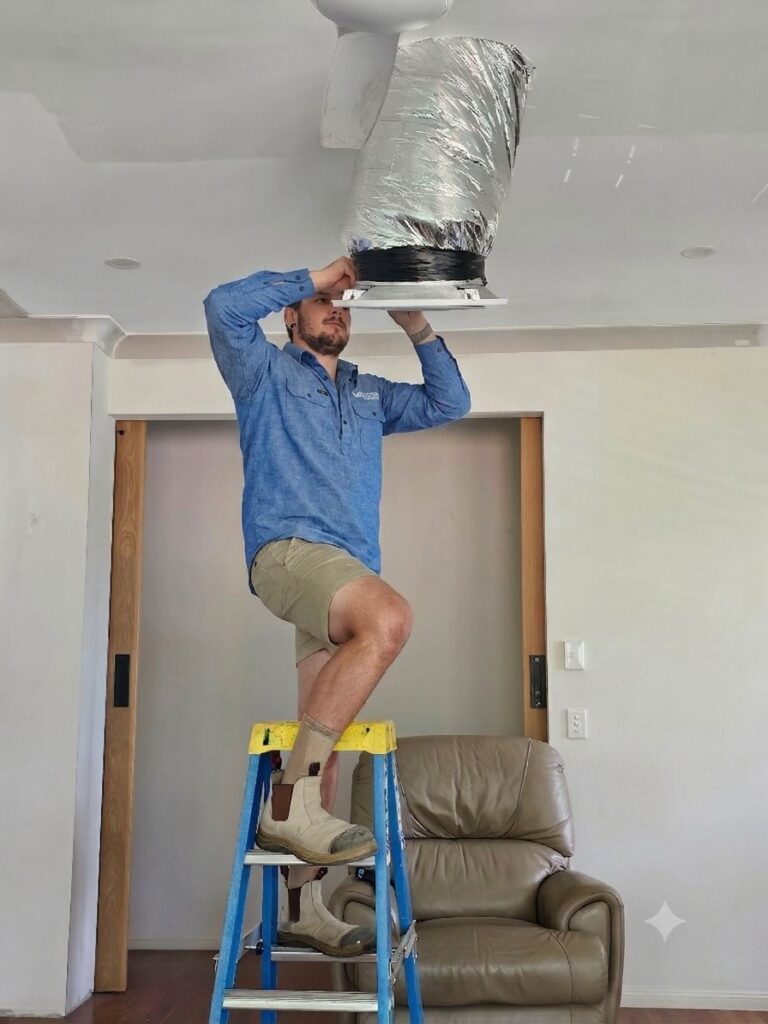

To facilitate effective drainage, two drainage systems were established from the indoor unit and its safety tray, directing water to the external gutter. A thorough network of ducting, branch take-offs, zone motors, and air plenums was expertly installed throughout the ceiling space, all connecting back to the indoor unit. A return air grille was strategically located in the upstairs hallway to enhance air circulation and improve system efficiency.

A dedicated electrical sub-circuit was created, running from the switchboard to the outdoor unit, which included an NHP isolation switch positioned next to the condenser. a MyZone Multipoint touchpad zone controller was installed in the upstairs hallway, enabling improved management of the air conditioning system and its various zones.

Seamless Installation of the Daikin FTXV80W 8.0kW High-Wall Split System Air Conditioning

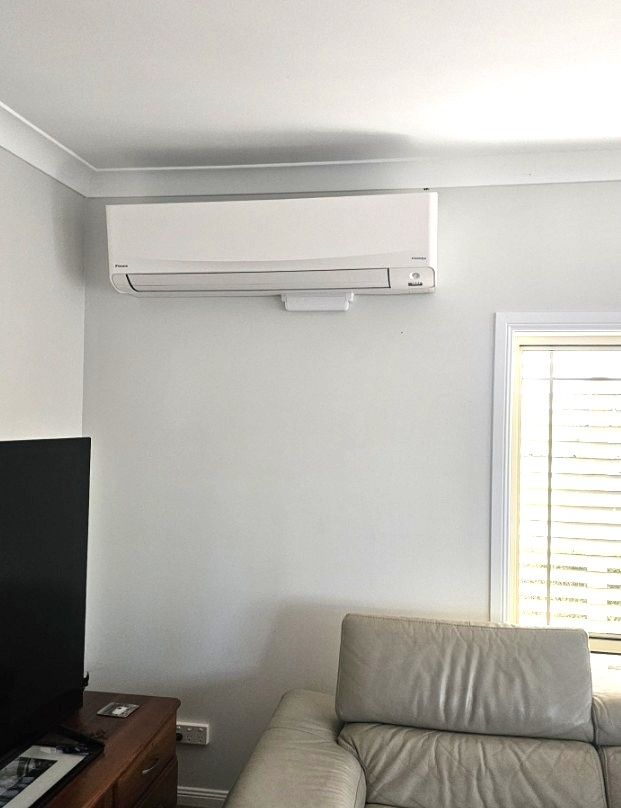

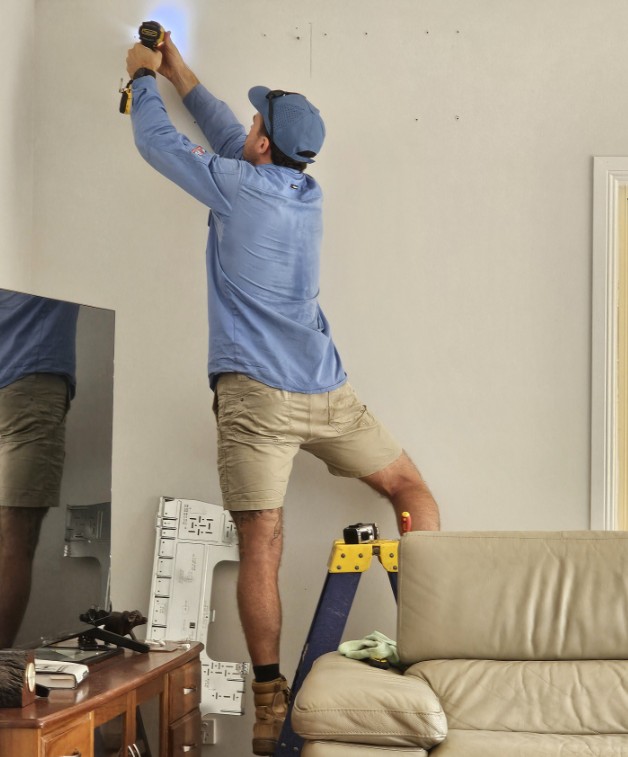

In the downstairs living area, Precision Electrical & Air expertly installed the Daikin FTXV80W 8.0kW high-wall reverse cycle split system. This process included the installation of new ducting, interconnect cables, and copper pair coils essential for linking the indoor and outdoor units, with the condenser placed on rubber feet to further reduce vibrations.

A dedicated electrical circuit was established from the switchboard to the condenser, which featured an NHP isolation switch for enhanced safety. To manage condensation effectively, an Aspen Silent+ Mini condensation pump was strategically located beneath the indoor unit and connected to the nearest stormwater downpipe. The entire system underwent rigorous commissioning to ensure optimal performance levels.

Overview of Installation Achievements

This installation has provided the property with efficient zoned ducted heating and cooling for the upper level, complemented by a dedicated high-wall split system for the downstairs living area. Both Daikin systems were installed in strict accordance with manufacturer specifications, ensuring that all electrical circuits and drainage systems were correctly configured and fully operational.

For top-notch ducted or split system air conditioning installation in Tarragindi or the surrounding suburbs of Brisbane Southside, contact Precision Electrical & Air at 0423 163 359.
