Dedicated Circuits for Heavy Tools in Workshops

As a rural property owner with a shed, transforming it into a fully functional workshop necessitates a strong focus on the electrical system.
Using equipment like a MIG welder, air compressor, and table saw on the same circuit as your home can result in significant issues, including tripped breakers, flickering lights, and dangerous overload situations.

This detailed guide covers the critical aspects of establishing a powerful workshop in the rural Mid North Coast. We will delve into essential topics such as dedicated circuits, sub-boards, and the use of three-phase power for larger machinery. If your requirements are basic—like lighting and a few outlets—please consult our guide on Shed Wiring on Acreage for a more relevant starting point. This article is aimed at workshops that demand substantial power.

Recognise the Significance of Dedicated Circuits for Your Workshop

Most residential properties feature multiple power points on shared circuits, which work well for low-power devices like kettles and televisions. complications arise when operating a 32-amp MIG welder alongside an air compressor simultaneously. This scenario can trigger serious electrical issues.

Consider the potential repercussions of connecting heavy machinery to household circuits:

• Frequent tripped breakers — A welder drawing over 30 amps on a 20-amp circuit will trip the breaker instantly or, even worse, cause the wiring to overheat before the breaker can react.
• Voltage drops — Long cable runs from the main board to the shed can lead to voltage sag, making your tools operate at higher temperatures, slower speeds, and reducing their lifespan over time.
• Power interruptions in the house — Your partner might find themselves in darkness in the kitchen because you activated the compressor, often leading to unwanted discussions.
• Heightened fire risks — Overloaded wiring within walls and cable runs is a primary cause of electrical fires in rural areas.

Implementing dedicated circuits effectively addresses these challenges. Each heavy tool receives its own circuit, appropriately sized for its load, complete with its own breaker protection. This arrangement guarantees that nothing is shared, and nothing is overloaded.

Evaluate the Power Needs of Common Workshop Tools

Before your electrician can develop an appropriate circuit layout, understanding the power requirements of your equipment is essential. Here’s a comprehensive breakdown of typical power draws for common workshop tools:

• MIG welder — Requires between 15A and 32A depending on the model, with larger 240V welders generally at the higher end. Three-phase units have different requirements (more on that later).
• Air compressor — Draws approximately 10A to 15A. The startup surge can be considerable—compressor motors often pull 3 to 4 times their running current for a few seconds during startup.
• Table saw — Typically consumes 10A to 15A for a quality cabinet saw. Less expensive contractor saws may require less power, but you’re unlikely seeking a budget option.
• Lathe (wood or metal) — Similar to table saws, these generally require between 10A and 15A, with metal lathes usually being at the higher end.
• Dust extractor — Approximately 10A for a single-phase unit. It must operate continuously while using other tools, so it should be on its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, and also requires a dedicated circuit.

When you add up the total power draw, it becomes clear that a single 20-amp circuit from the house will not be adequate. A well-equipped workshop can easily demand 80 to 100+ amps across all circuits when operating at full capacity, underscoring the need for careful planning.

Select the Correct Circuit Breaker Size and RCD Protection for Safety

Each circuit in your workshop requires a breaker that matches the cable size and expected load. Your electrician will determine this based on your equipment, but as a general guideline:

• 15A or 20A circuits — Suitable for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Required for welders, plasma cutters, and other heavy single-phase machinery.
• Three-phase breakers — Sized according to the specific requirements of the equipment (details below).

RCD protection is crucial. In accordance with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must have RCD (safety switch) protection. This requirement is mandatory; it is a legal obligation designed to safeguard against the high-risk nature of workshop settings.
Concrete floors, metal tools, dust, and moisture heighten the likelihood of earth faults. RCDs instantly disconnect power if a current leak to earth occurs, which can make the difference between a minor shock and a serious injury.

Typically, your electrician will use a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that incorporate both functionalities. RCBOs are particularly advantageous in workshops because a fault on one circuit does not disrupt power to the others, enhancing safety and reliability.

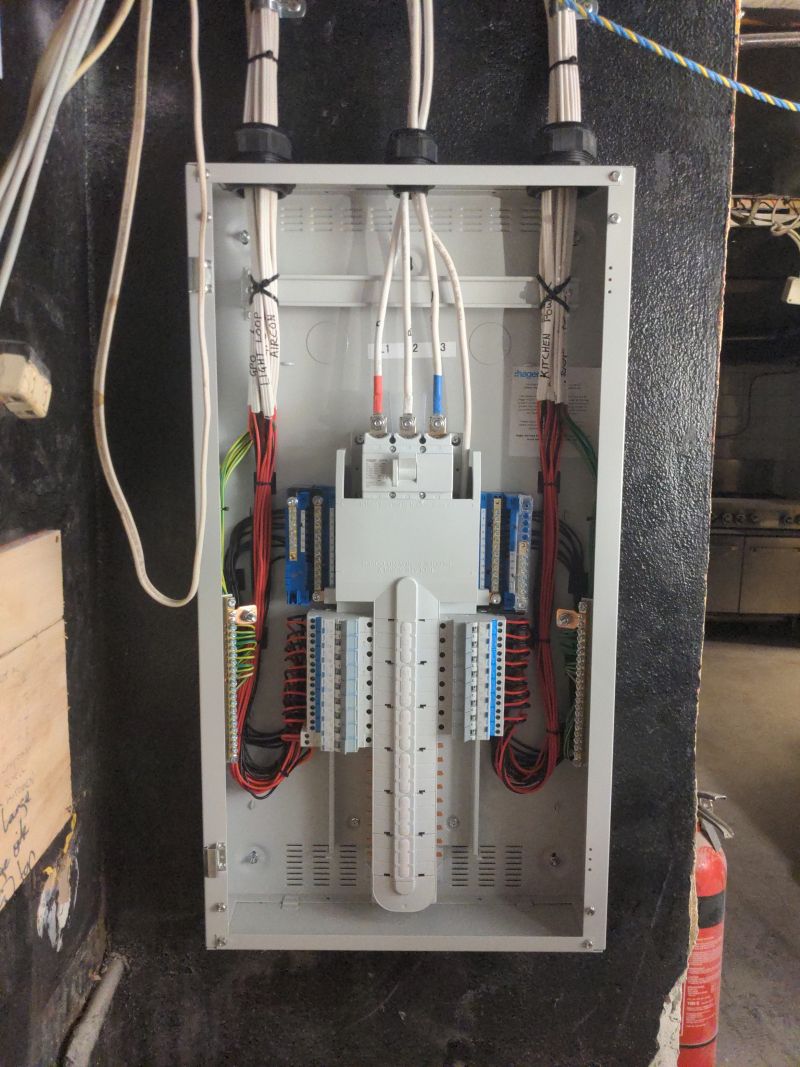

Install a Dedicated Sub-Board for Your Workshop’s Electrical Requirements

Rather than running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop is a more efficient choice. Here are the benefits:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This configuration reduces voltage drop and lowers cable costs.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible in the workshop. If a breaker trips, you won’t need to walk back to the house to reset it, saving time and effort.
• Future expansion — A properly sized sub-board allows for additional circuits in the future, making it easy to add new tools as your workshop evolves.
• Isolation capability — You can turn off all workshop power from a single main switch without impacting the house’s electricity, enhancing safety during maintenance.

If your house switchboard is outdated or operating at full capacity, you may need an upgrade before effectively powering the workshop sub-board. Older ceramic fuse boards may struggle to handle the increased load.

A standard workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total anticipated load plus a buffer for future additions, ensuring optimal performance and safety.

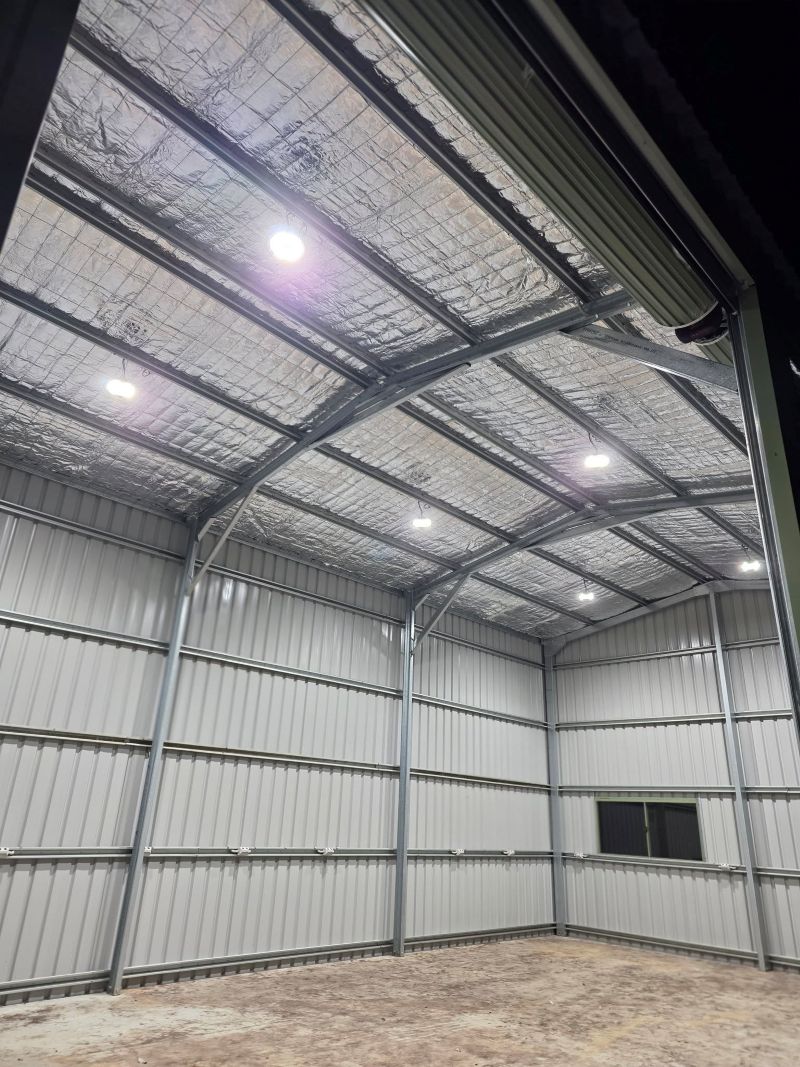

Ensure Your Workshop Has Adequate Lighting for Safety and Efficiency

Proper lighting is essential for safety in your workshop. You need to clearly see your work, especially around sharp blades and hot materials. Here are some key lighting considerations:

• High-lumen LED battens — LED panels or battens deliver bright, even illumination throughout the area. Aim for a minimum of 500 lux at bench height to ensure clarity.
• Dust-proof fittings — Regular lights can become blocked with sawdust and metal shavings. Choose IP-rated fittings that resist dust and moisture for longevity and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is vital for precision work and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring that you still have illumination if a power circuit trips. Being left in darkness beside a running table saw poses a significant safety risk.

We have extensive experience with lighting layouts in commercial spaces. Our team can assist you in creating a workshop lighting plan that significantly enhances your working environment and safety.

Plan for Effective Ventilation and Dust Extraction Circuits

Engaging in activities such as woodworking or welding necessitates proper ventilation as much as sufficient power. Dust extraction systems and exhaust fans require their own dedicated circuits because:

• Continuous operation — Your dust extractor must run whenever you’re cutting. It cannot share a circuit with the tool it serves, as this compromises efficiency and safety.
• Motor startup loads — Dust extraction fans and collectors experience significant startup surges, similar to compressors, thus requiring dedicated circuits.
• Interlocked switching — In an optimally designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This necessitates careful circuit design to ensure functionality.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation. If you’re using a cyclone-style dust collection system, it might require a 20A circuit based on motor specifications, ensuring efficiency and effectiveness in maintaining air quality.

Utilise Three-Phase Power for Enhanced Performance of Heavy Equipment

When you engage in intensive metalwork or operate large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its limits. Three-phase power offers several advantages:

• Increased power capacity — Three-phase motors are more efficient and provide greater power without the excessive startup surges typical of single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power for optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, prolonging the lifespan of your tools and machinery.

Accessing three-phase power in rural areas of the Mid North Coast depends on its availability at the street level. Some properties may already have a three-phase supply, while others might need a phase converter or a new connection from Essential Energy.
For further information, please refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is accessible, your workshop will require the installation of a three-phase switchboard with appropriately rated breakers and an effective earthing system to ensure safety and reliability.

Implement Surge Protection to Safeguard Your Equipment

Tools featuring electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are vulnerable to voltage spikes. Your workshop generates surges every time a large motor starts or stops. Coupled with the voltage instabilities often found in rural power lines, your valuable equipment faces significant risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they affect your tools. This is a cost-effective measure compared to replacing the electronic components of a $3,000 welder or a CNC controller, helping you safeguard your investment.

If your property is susceptible to storms (common in the Mid North Coast), we recommend adding surge protection at the main switchboard to defend against lightning-induced surges that could damage your equipment.

For properties relying on a generator for backup power, incorporating a generator changeover switch ensures smooth transitions between mains power and generator supply without risking back-feeding or damaging connected equipment, providing peace of mind during power outages.

Consider Additional Features for Your Workshop Electrical Configuration

Here are a few more elements to incorporate into your workshop wiring from the beginning:

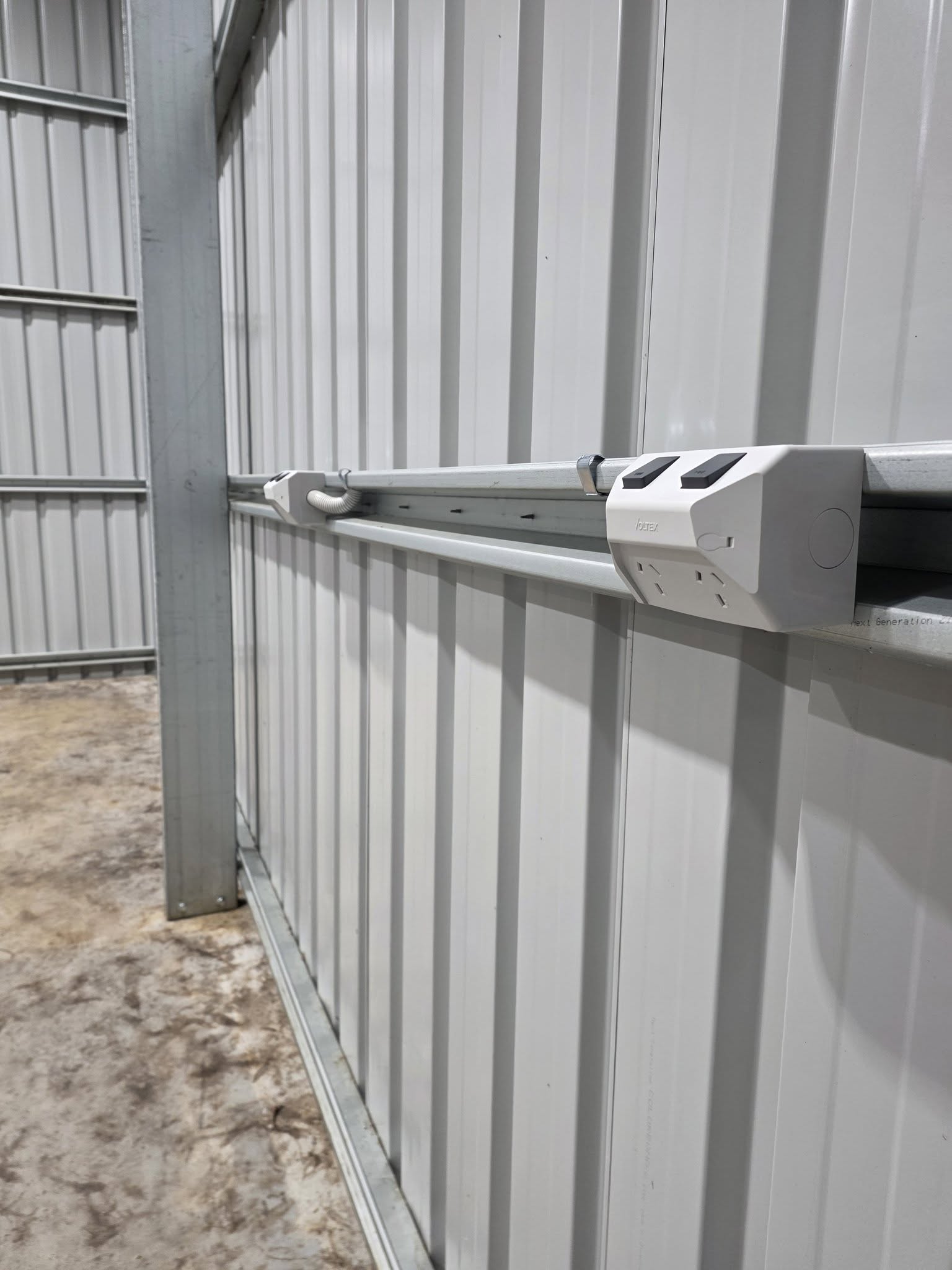

• Ample power points — Install more power points and switches than you think you’ll need. Use weatherproof GPOs if the workshop is open-sided, ensuring durability. Consider double power points at every bench and outlets at key machinery locations to enhance accessibility.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. It is far easier to run cables during the initial fit-out than after the walls are finished, preventing future complications.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, especially in rural areas lacking street lighting, enhancing safety.
• EV or equipment charging — If you’re using electric equipment (battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets, ensuring efficient operation of all devices.

Accurately Estimate the Cost of Your Workshop Electrical Installation

Cost estimates will vary based on workshop size, the number of circuits required, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000, providing foundational electrical support.
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000, ensuring ample capacity for serious workshop needs.
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+, accommodating extensive power requirements.

These figures represent baseline estimates. Complex layouts, lengthy cable runs from the mains, or the need for upgrades from Essential Energy will increase costs. We provide transparent quotes based on your specific workshop and equipment needs—no hidden fees, ensuring you know exactly what to expect.

Important Reminder: All Electrical Work Must Be Conducted by Licensed Professionals

This point is crucial. In New South Wales, all electrical wiring work must be performed by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C. We operate throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina, ensuring quality service.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to fines. If someone offers to do the work cheaply without a licence, it’s not a saving—it’s a risk that can have serious repercussions.

Common Questions About Workshop Electrical Requirements

Can I Use a Standard Power Point for My Welder?

Small stick welders (up to around 140A output) can be operated with a standard 10A or 15A power point. Any larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately—or potentially cause the wiring to overheat if the breaker is faulty. If you weld regularly, it’s vital to have a dedicated 32A circuit installed to ensure safe operation.

How Many Circuits Are Generally Required in a Workshop?

The number of circuits needed varies based on your tools, but a well-equipped workshop typically requires a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a couple of spares for future additions. We customise the design based on your specific equipment list, ensuring you have everything you need.

Is Three-Phase Power Essential for a Home Workshop?

Not necessarily. Most home workshops function well on single-phase power with dedicated circuits. Three-phase power is only vital if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Check out our complete guide on Do I Need Three-Phase Power on My Property? to determine if it suits your needs, ensuring you make an informed decision.

Can My Existing Switchboard Support a Workshop?

It’s possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. We will assess this during the quoting process to ensure everything is compliant.

What Is the Typical Duration for a Workshop Electrical Installation?

A basic single-phase setup can typically be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on the complexity and cable run distances. We will provide a timeline along with your quote, ensuring you know what to expect.

Ensure Your Workshop Is Properly Wired for Safety and Efficiency
