Concrete Thickness for Car Hoists: Key Considerations

When considering the installation of a hoist in your workshop, it is vital to assess both the condition and specifications of your concrete floor along with your selected hoist. A car hoist applies significant point loads through a limited number of bolts, necessitating that the underlying concrete slab can properly support this weight. This issue is particularly significant in workshops located in Sydney, Melbourne, Brisbane, and throughout Australia. Below is a comprehensive guide to help you navigate this crucial aspect.

There is no universal slab thickness applicable to every hoist installation. The correct thickness depends on the type of hoist in use, its rated load capacity, and the installation guidelines set forth by the manufacturer. It is essential for your installer, and if needed, a structural engineer, to assess your floor’s suitability before beginning any installation work.

What Factors Influence the Floor Requirements for Your Hoist Installation?

There is no single measurement that applies universally, as different types of hoists exert varying loads on the floor. For example, a two-post hoist transfers the entire weight of the vehicle through two columns, which concentrates the load at the baseplate bolts. Conversely, a four-post hoist distributes its load across four posts and a larger footprint. A scissor lift, which operates closer to the ground, impacts the slab in a different manner. The specific nature of the hoist dictates the necessary specifications rather than relying on a generic measurement.

Three key factors determine the load that your slab must support.

Understanding the Type of Hoist and Its Load Capacity

A standard two-post hoist designed for cars and light commercial vehicles has specific load requirements that differ from a heavy-duty four-post hoist intended for larger 4WDs and vans. Hoists with higher capacities exert more significant loads at their anchor points, often necessitating a thicker and more durable slab. You can find capacity information on the hoist’s data plate and in the accompanying manual, which serves as the foundation for your floor specifications.

Adhering to the Manufacturer’s Installation Guidelines

All reputable hoists come with an installation manual detailing the minimum concrete thickness, required concrete strength, appropriate anchor types, and necessary distances from joints or slab edges. This manual is crucial for a successful installation. If your slab does not meet these requirements, the hoist installation should be delayed until compliance is achieved.

Assessing the Condition and Composition of Your Existing Slab

Not all slabs of the same thickness offer the same level of support. Factors such as the quality of reinforcement, curing methods, proximity to control joints or cracks, and conditions beneath the surface all influence the slab’s capacity to support a hoist. An older slab that appears intact may still present significant risks. It is wise to have a qualified professional evaluate the slab instead of relying solely on visual assessments.

What Is the Recommended Slab Thickness for Your Hoist Installation?

While many individuals seek a definitive figure for slab thickness, it is crucial that this specification comes from your hoist’s installation manual rather than a generic article. The manual specifies the minimum slab thickness, concrete strength, and typically outlines a minimum curing period before anchors can be installed. Heavier hoists, specific anchoring systems, or suboptimal slabs may require stricter guidelines.

This approach prioritises safety. The reliability of a hoist is directly linked to the integrity of the surface to which it is anchored. Specifications must originate from the manufacturer of your specific model, and if the floor is old, uncertain, or marginal, consulting a structural engineer is advisable. Provide information about the hoist you are considering and the state of your floor, and we will assist you in identifying the appropriate specifications.

Signs That Your Slab May Not Be Adequate

Although a visual inspection alone cannot provide a comprehensive assessment of a slab, several indicators should be communicated to your installer prior to obtaining a quote. If any of these conditions apply, mention them early to facilitate a proper evaluation and avoid potential issues on installation day.

Is Your Slab Thin, Aged, or Uncertain?

If you are in a leased space and cannot determine the thickness or construction details of the floor, it is crucial to clarify this information. Older industrial slabs can exhibit significant variability in quality. If documentation is lacking, a core test or an assessment by an engineer can provide valuable insights.

Are There Cracks, Movement, or Hollow Sounds Present?

Visible cracks near the intended anchor points, areas that have lifted or settled, or a hollow sound when tapping the surface can suggest underlying issues. While these signs do not necessarily disqualify a slab from supporting a hoist, they warrant further investigation before any anchoring takes place.

Will the Hoist Be Installed Near a Joint or Edge?

Anchors placed too close to control joints, expansion joints, or slab edges can result in inadequate anchoring. Hoist manuals specify minimum edge distances to mitigate this risk. The placement of the hoist on the floor is as critical as the thickness of the slab.

Who Confirms the Safety of Your Floor?

This consideration is essential for your safety. The suitability of your slab for a hoist is confirmed by your installer, who will adhere to the specifications provided by the hoist manufacturer. If there is any uncertainty, consulting a structural engineer is recommended. Relying on informal sources such as YouTube videos or casual recommendations can be risky, as the consequences of miscalculating could be severe, including a vehicle falling.

For standard installations on known, compliant slabs, an installer following the manual is typically sufficient. If the floor is old, undocumented, marginal, or if the hoist has a high capacity, enlisting an engineer for evaluation is prudent. A core sample can confirm the actual thickness and strength, while an engineer can determine if the slab can support the load or if modifications, such as a thickened pad or a new pour, are necessary.

At MetroBooths, we assist workshops in selecting the right hoist tailored to their specific site requirements rather than merely offering a product. Share details about your floor and the weight you intend to lift, and we will guide you to the appropriate hoist and identify any necessary checks beforehand.

Selecting the Ideal Hoist for Your Existing Floor

Often, the most practical solution is to choose a hoist that aligns with your existing slab, thus avoiding additional expenses related to concrete repouring. A wide variety of hoist types are available, and the optimal choice depends on the characteristics of your floor, ceiling height, bay configuration, and the types of vehicles you service.

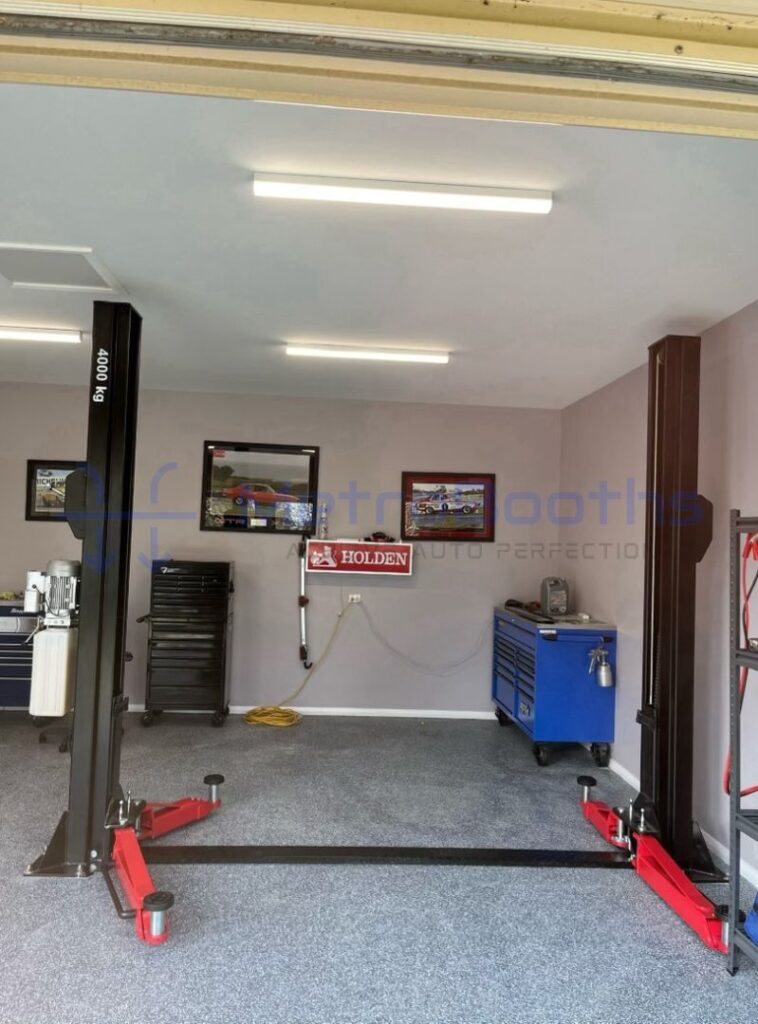

A two-post hoist is the industry standard for cars and light commercial vehicles, frequently associated with slab inquiries due to its unique loading characteristics. If your floor or layout accommodates a wider footprint, a four-post hoist distributes loads differently and is often preferred for storage or heavier vehicles. If space or slab depth is limited, consider a scissor lift or low-rise alternative.

Explore our extensive range of hoists, then consult with us regarding the specifics of your workshop. We provide supply and installation services throughout Australia and prefer to address any flooring concerns before commencing drilling.

Frequently Asked Questions About Hoist Installation

What Is the Minimum Concrete Thickness for a Two-Post Hoist?

There is no universally applicable thickness for every two-post hoist, as requirements vary based on capacity and anchor type. The necessary thickness is specified in your specific hoist’s installation manual, which outlines the minimum slab thickness and concrete strength for that model. For older or undocumented slabs, consulting a structural engineer or conducting a core test can provide confirmation. Share your hoist details with us, and we will direct you to the correct specifications.

Can a Car Hoist Be Installed on an Existing Workshop Slab?

Yes, it is often feasible, provided the existing slab meets the hoist manufacturer’s minimum thickness, strength, and edge-distance requirements. Many workshops successfully install hoists on existing floors. It is crucial to ensure that the slab conforms to the necessary specifications rather than making assumptions. If the floor is undocumented, cracked, or questionable, it should be evaluated prior to installation. A core sample and an engineer’s assessment can provide the necessary clarity.

What Concrete Strength Is Required for a Car Hoist?

Most car hoists specify a minimum concrete compressive strength in their installation manuals, with higher-capacity hoists potentially requiring more stringent specifications. Concrete strength is influenced not only by the mix used but also by how the slab was cured and reinforced. This is why a newly poured slab generally requires adequate time to cure before anchors are installed. Always refer to the specifications in your hoist’s manual and confirm with your installer or engineer based on your specific site conditions.

Is an Engineer Needed to Assess My Floor Before Hoist Installation?

Not always, but it may be necessary in certain situations. For a straightforward installation on a known, compliant slab, following the manufacturer’s guidelines with your installer is generally sufficient. You should engage a structural engineer if the floor is old, undocumented, cracked, or marginal, or if you are installing a high-capacity hoist. An engineer can verify thickness and strength through a core test and advise whether the slab is suitable or needs remediation. When in doubt, seeking an assessment is a prudent step. It is more cost-effective than addressing the consequences of an inadequate installation.

What If My Concrete Floor Is Not Thick Enough for a Hoist?

If your slab does not meet the hoist’s specifications, installation should not proceed until the floor is brought up to the required standard. Anchoring into an insufficient slab carries significant risks, including the potential for anchor failure under load, which could result in a vehicle falling. Common solutions include pouring a thickened concrete pad in the hoist’s footprint or adding a new section of slab according to the manufacturer’s specifications. An engineer can recommend the most appropriate option for your situation.

Prioritise Floor Safety Before Hoist Installation

The safety of a hoist is fundamentally linked to the integrity of the slab it is anchored to. Ensure that the floor meets all specifications, adhere to the manufacturer’s guidelines, and consult an engineer whenever uncertainty arises. By following these steps, you can facilitate a smooth and successful installation process.

Contact MetroBooths to discuss your workshop floor and lifting needs, and we will assist in specifying the right hoist for your site. Call us at 0433 426 291 or email sales@metrobooths.com.au for prompt assistance.
